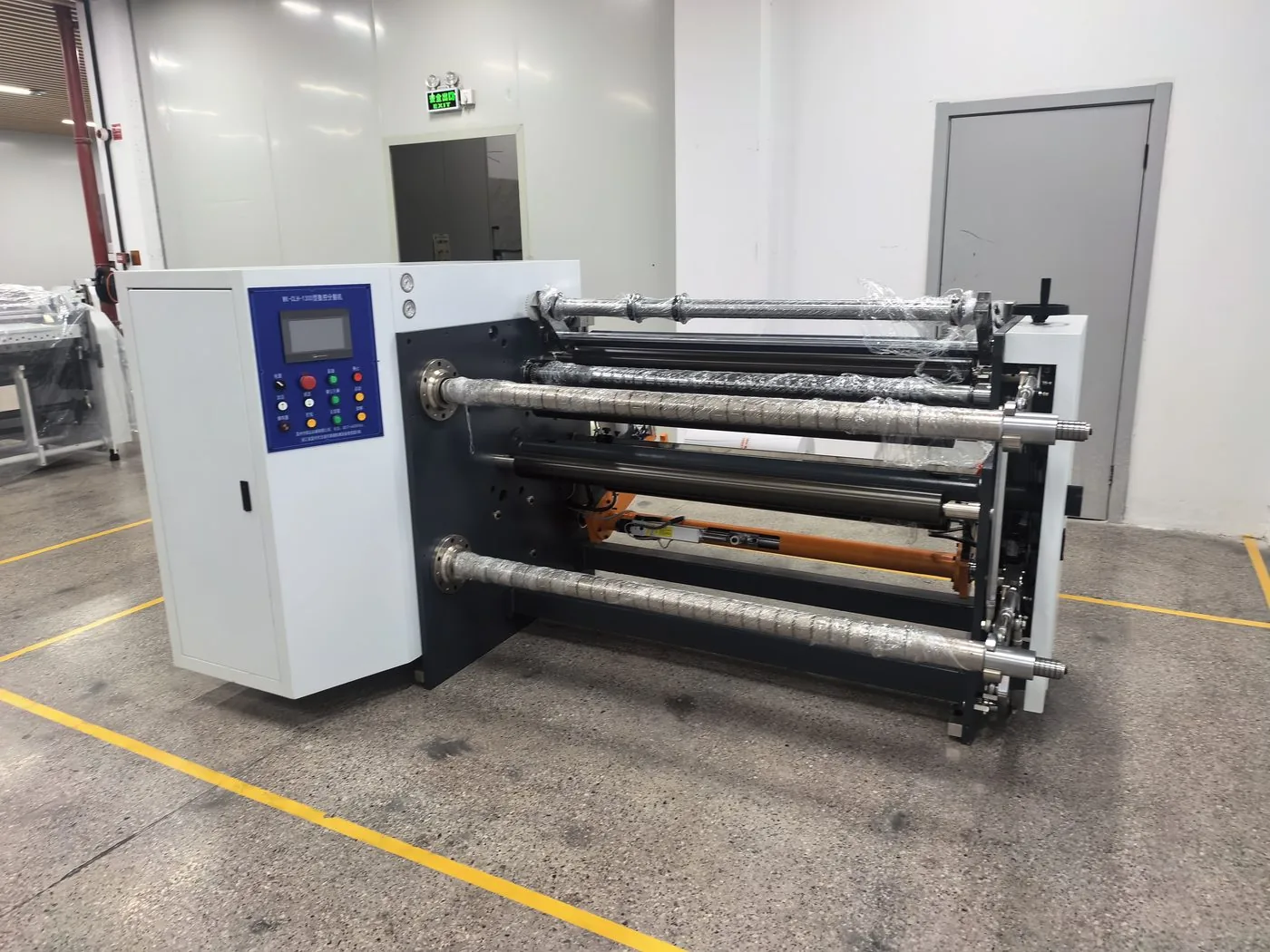

CLH型滑差轴分割机
入门款滑差轴机型
CLH-1300 / CLH-1600
分割机Slitting Machines
机型介绍Overview

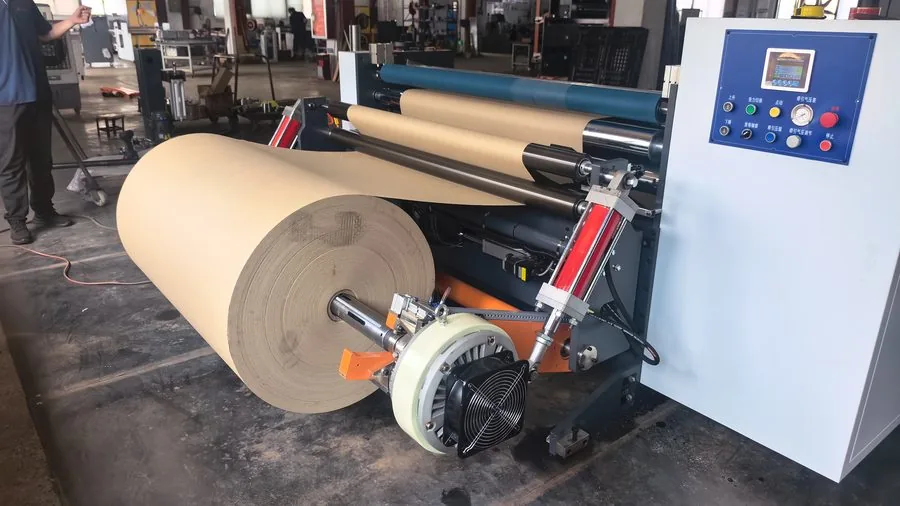

CLH 型是入门款滑差轴收卷分割设备。配双滑差轴差速收卷、磁粉制动、张力锥度自动控制、超声波纠偏，中间牵引配合圆刀分割与风机排废，速度可达 200 米/分。多种选配：收卷压辊、保护膜贴合、大直径放料架。The CLH Slip Shaft Slitting Machine is the entry-level slip-shaft slitting solution. It features dual slip-shaft differential rewinding, magnetic-particle braking, automated taper tension control, and ultrasonic web guiding. Center traction with circular-knife slitting and blower waste extraction delivers up to 200 m/min. Optional upgrades include a rewind nip roller, protective-film lamination, and large-diameter unwinding stands.
双滑差轴差速收卷，端面齐整
收卷及放卷张力单独锥度控制
放卷气动上料带超声波纠偏
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
CLH-1300 / 1600
放卷宽度
1300 / 1600 mm
收卷直径
600 mm
放卷直径
900mm / 1300mm 可选
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的分切与复卷，是滑差轴机型的入门之选。Ideal for slitting & rewinding paper, self-adhesive label stock, PVC and EVA webs — the entry choice for slip-shaft applications.
细节视图DETAILS

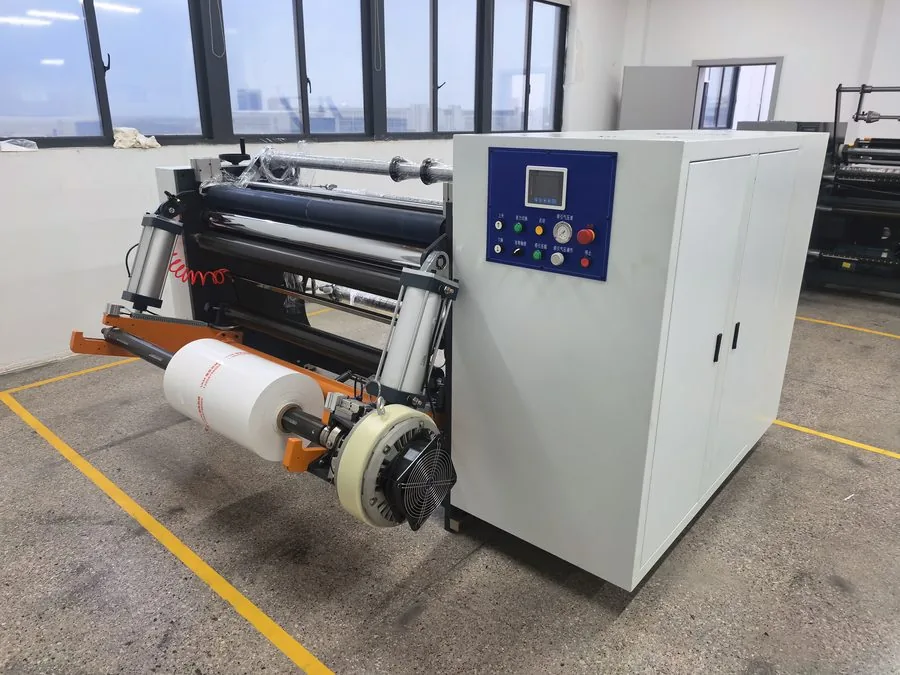

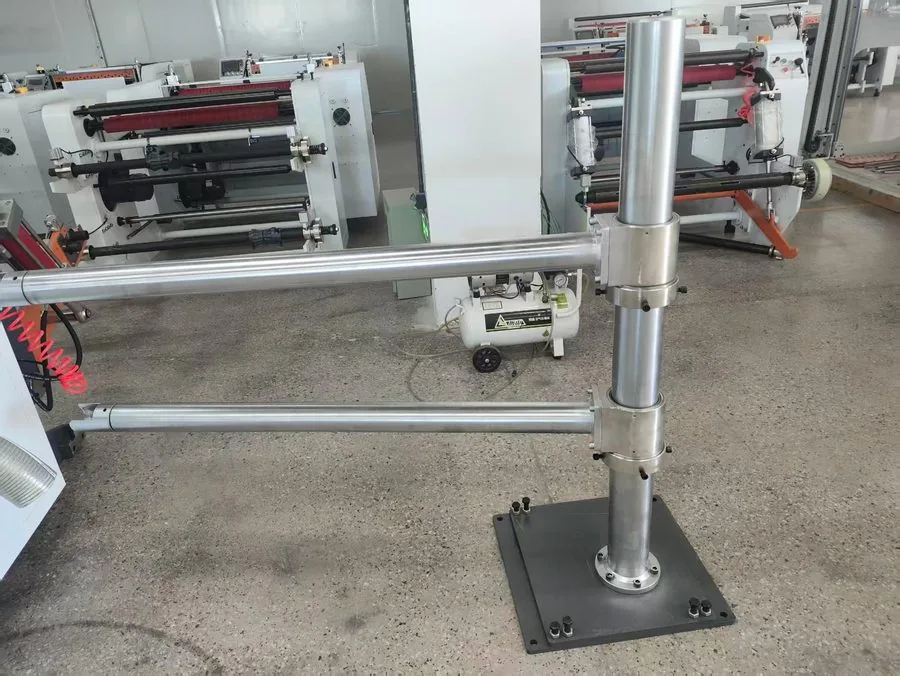

结构细节Structure Details
