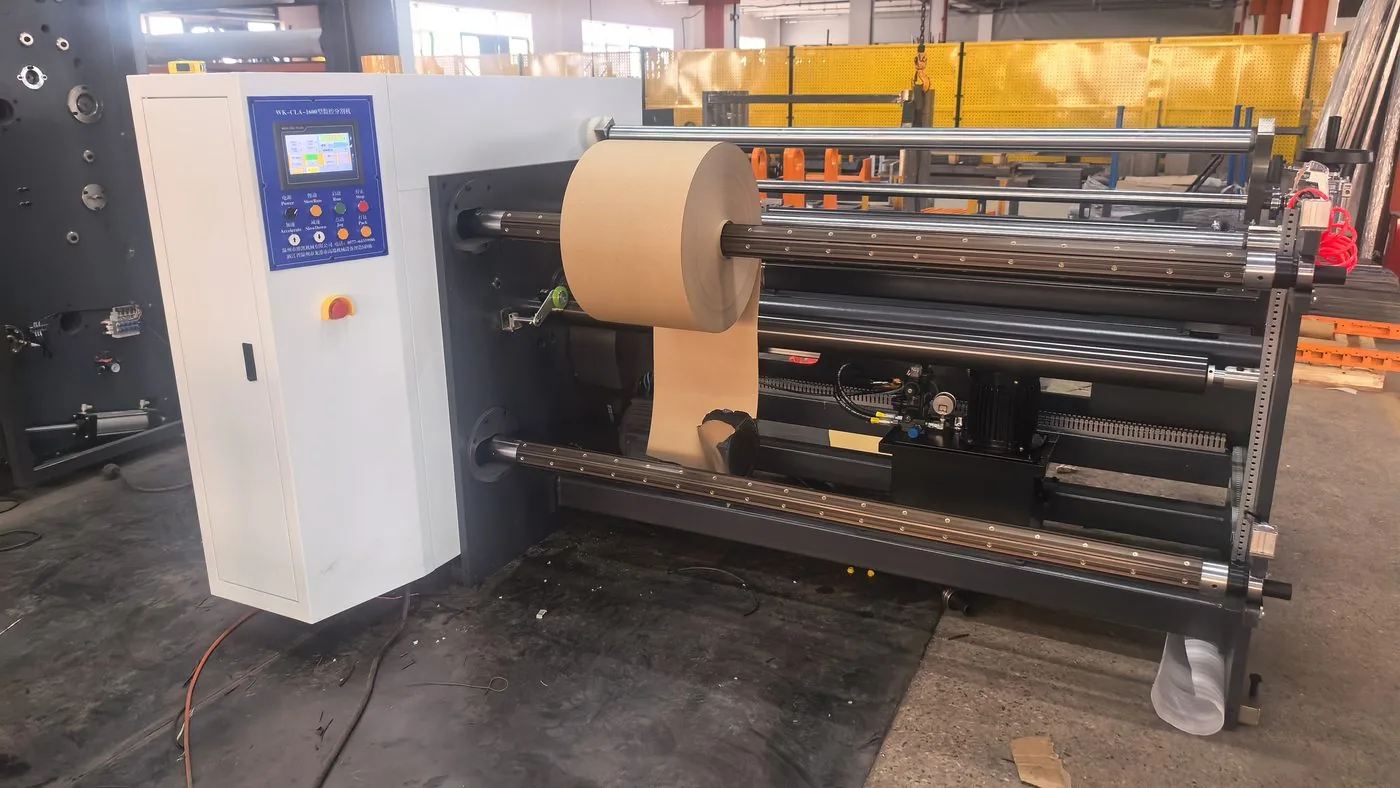

CLA Slitting Machine
Air-shaft winding, pneumatic loading with web guiding
CLA-1300 / CLA-1600
分割机Slitting Machines
机型介绍Overview

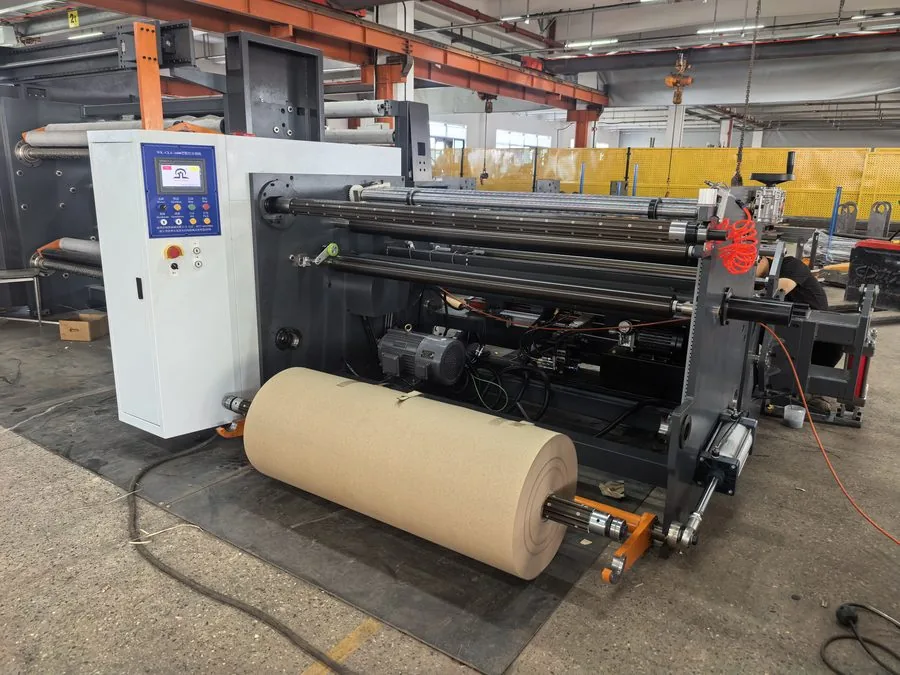

CLA 型分割机，收放卷配气胀轴、圆刀分割、风机排废、超声波纠偏。气动上料降低换卷劳动强度。另有多种选配，包括"下收卷气动卸料"方便复卷卸料操作，以及大直径可用的液压放料架。The CLA Air Shaft Slitting Machine features air-shaft unwinding and rewinding, circular-knife slitting, blower waste extraction, and ultrasonic web guiding. Pneumatic loading reduces roll-change labor. Optional upgrades include bottom-rewind pneumatic unloading for easier rewinding, plus large-diameter hydraulic unwinding stands.
Compact structure saves floor space
Pneumatic loading speeds up roll changes
Easy to operate, beginner-friendly
技术参数SPECIFICATIONS
技术规格Technical Specifications
Available Models
CLA-1300 / 1600
Unwind Web Width
1300 / 1600 mm
Rewind Diameter
600mm / 800mm 可定制
Unwind Diameter

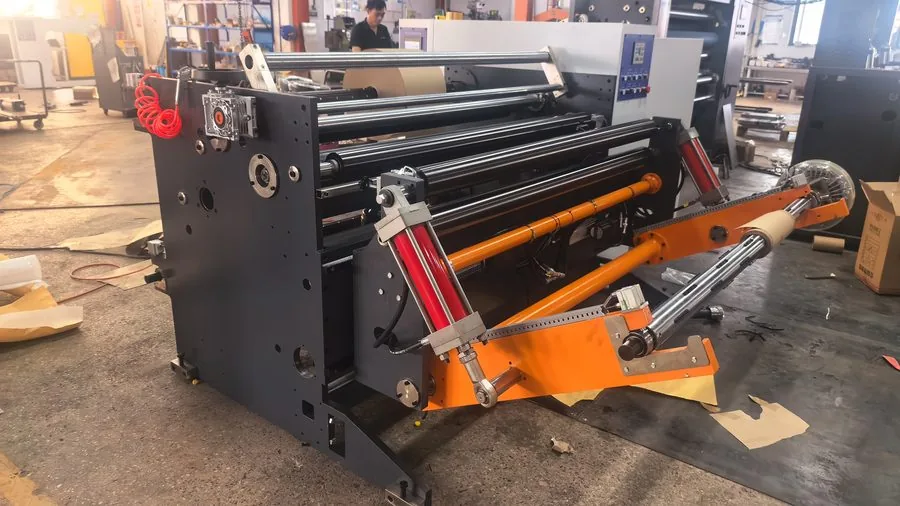

900mm · 选配 1300 直径放料架
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的分切与复卷，特别适合中小批量、多规格的生产场景。Ideal for slitting and rewinding paper, self-adhesive label stock, PVC and EVA webs — especially suited to small-batch, multi-spec production.

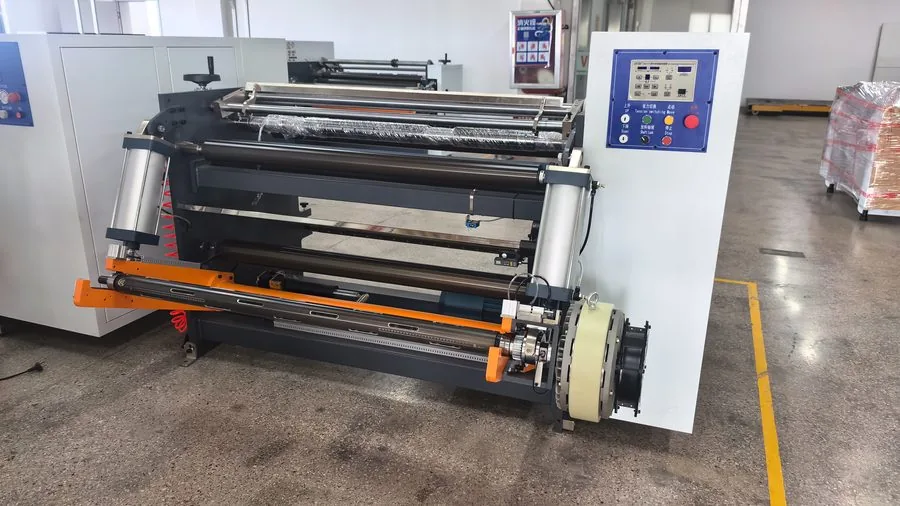

细节视图DETAILS
结构细节Structure Details
