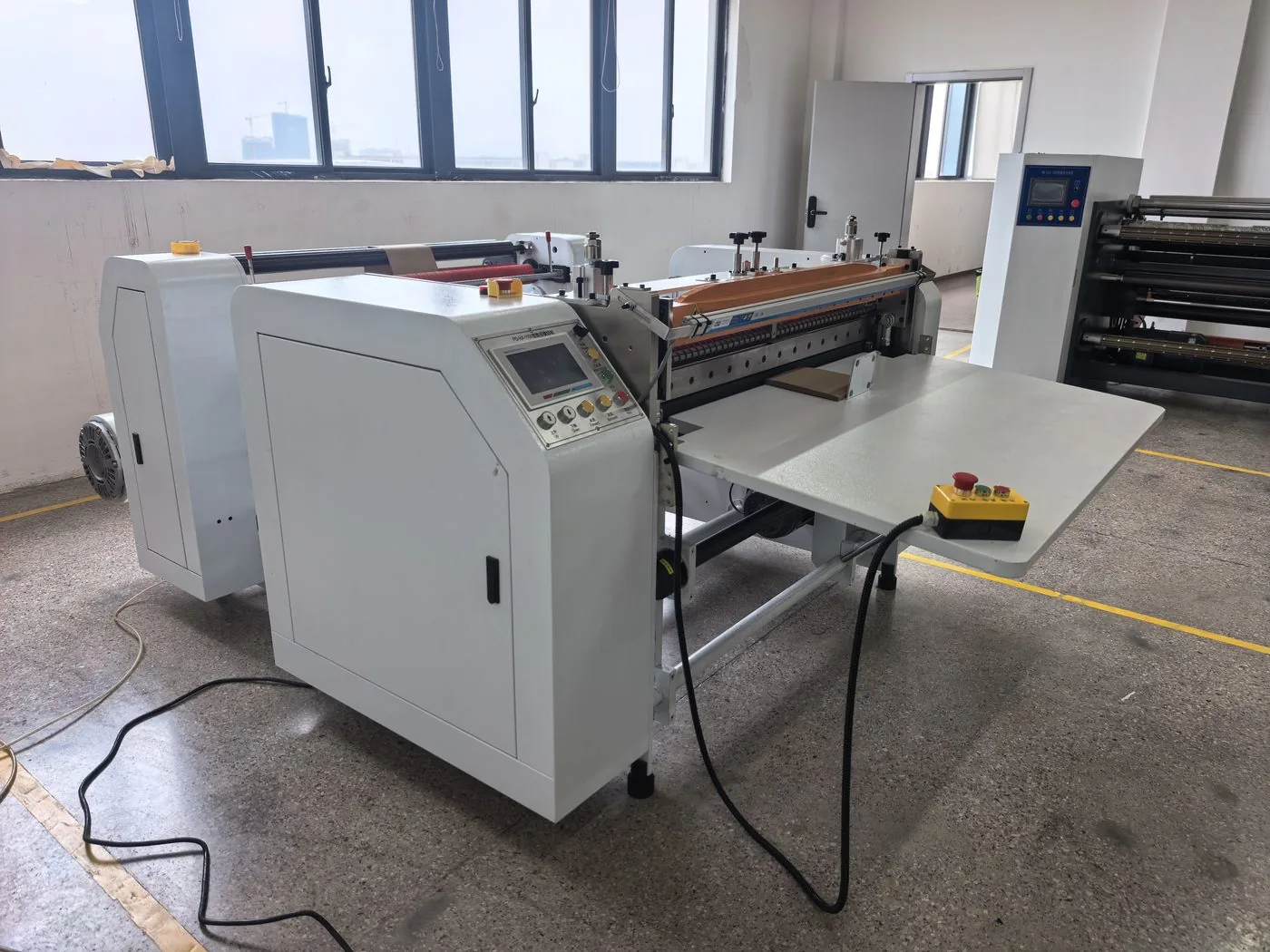

HX型横切机
伺服送料、气动上料带张力控制
HX-800 ~ HX-1600
横切机Sheet Cutters
机型介绍Overview

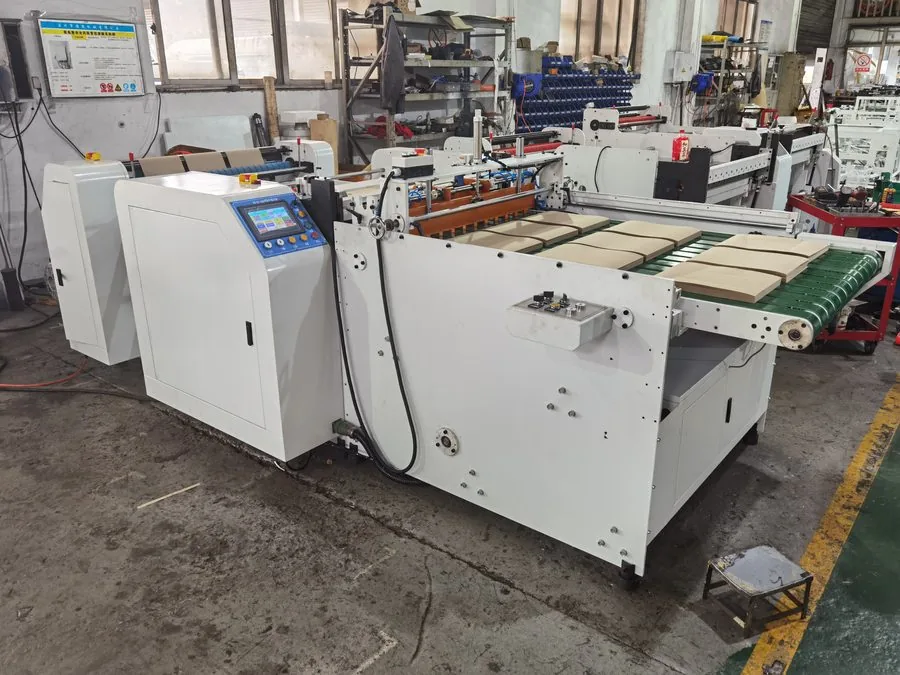

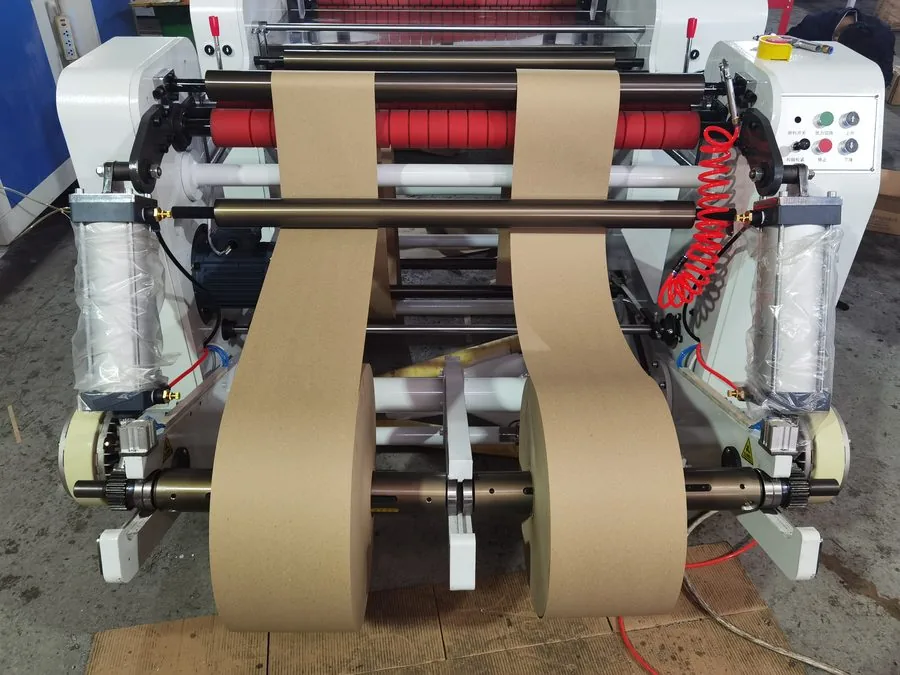

HX 型是升级款横切设备，搭载伺服电机送料系统，最高速度 90 米/分，标配气动上料与磁粉张力控制。另有多种选配：纠偏系统、双卷放料套件、圆刀分割系统、传送带收料架、多种大直径放料架。The HX Roll-to-Sheet Cutting Machine is the upgraded sheeting solution, featuring a servo-motor feeding system with a top speed of 90 m/min. Standard pneumatic loading and magnetic tension control are paired with versatile options including web guiding, dual-roll unwinding, circular-knife slitting, conveyor-belt delivery rack, and multiple large-diameter unwinding stands.
伺服驱动送料，裁切效率显著提升
气动上料配磁粉张力，稳产更省力
多种选配，满足多样化需求
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
HX-800 / 900 / 1000 / 1100 / 1200 / 1400 / 1600
放卷直径
900mm 或选配 1.2 米大放料架
最小误差
±0.2 mm
最高速度
90 m/min · 200 cuts/min
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的宽幅高速定长裁切，广泛用于印刷厂、包装厂等规模化产线。Ideal for high-speed, wide-format length cutting of paper, self-adhesive label stock, PVC and EVA webs — widely used in printing and packaging production lines.
细节视图DETAILS

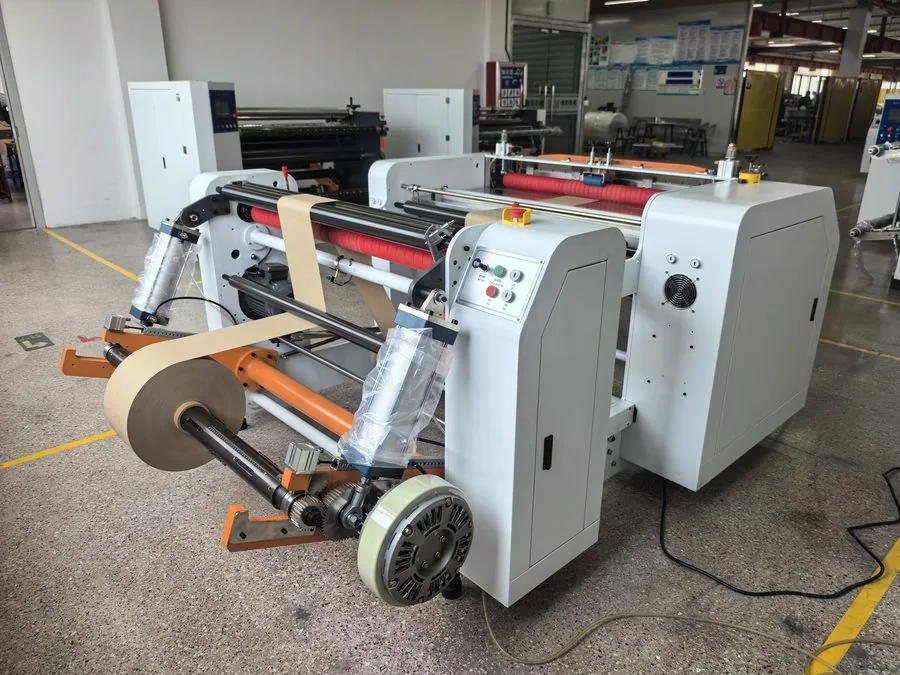

结构细节Structure Details
