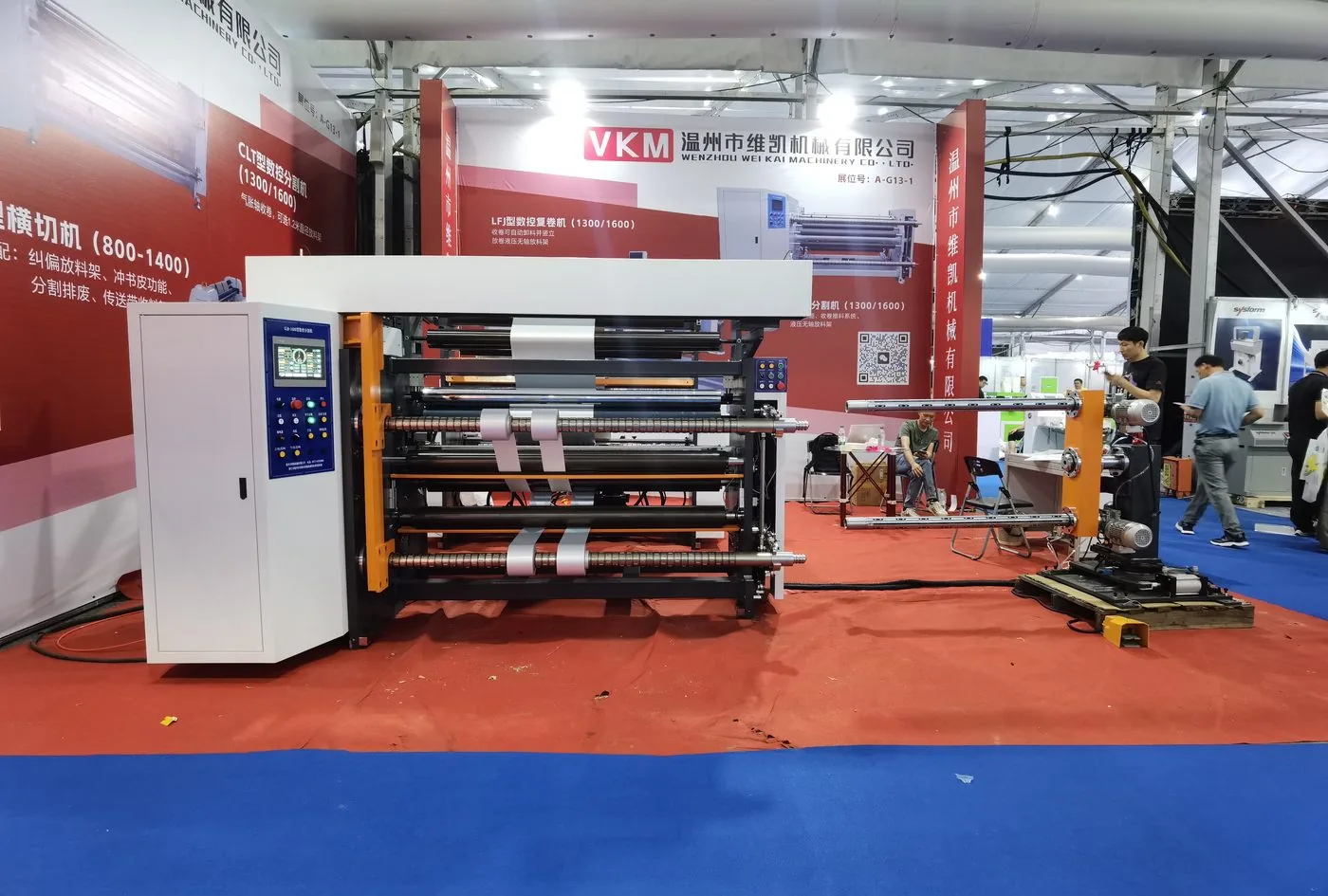

GLM型龙门式滑差轴分割机
龙门结构，高速高配
GLM-1600 / GLM-1800
分割机Slitting Machines
机型介绍Overview
GLM 是龙门式滑差轴分割机。放卷为液压无轴上料，搭配气动接纸平台；中间牵引配合圆刀分切与风机排废，运行速度可达 400 米/分钟；收卷为双滑差轴配张力锥度控制，全程张力稳定、端面平整无褶皱。The GLM is a portal-type slip-shaft slitting machine. The unwind is a hydraulic shaftless type combined with a pneumatic splicing table; center traction with circular-knife slitting and blower waste extraction runs at up to 400 m/min; dual slip-shaft rewinding with taper tension control delivers stable tension throughout and perfectly flush roll edges.

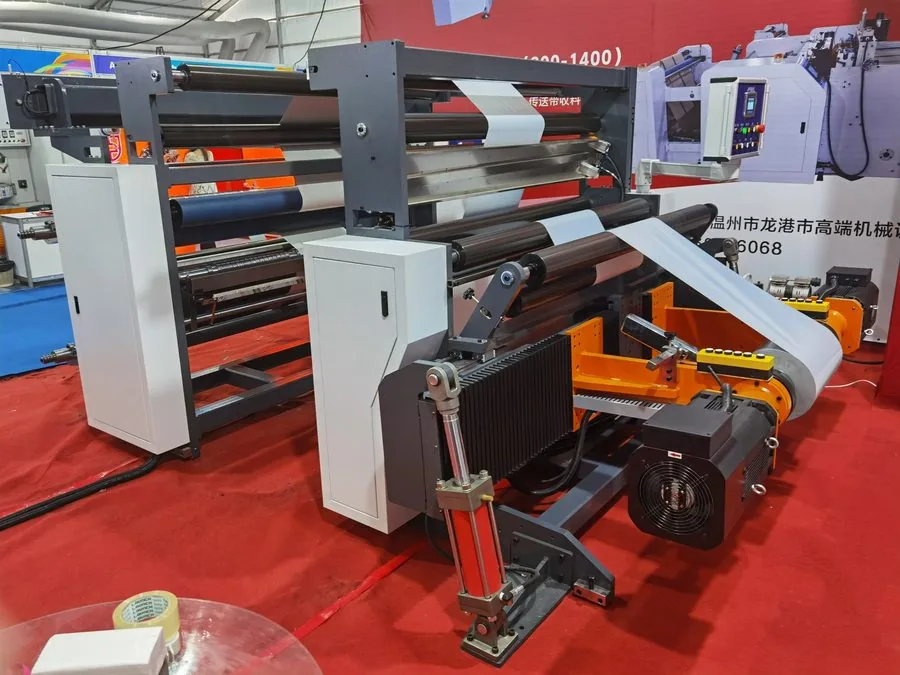

放卷液压无轴上料，搭配气动接纸平台，换卷更省时
全程张力稳定，端面平整无皱
收卷处自动推料卸卷，大幅节省人力
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
GLM-1600 / 1800
放卷宽度
1600 / 1800 mm
收卷直径
600 / 800 mm 可选
放卷直径
1300 mm
适用材料与应用Applications
适用于标签、纸张、不干胶、PVC、EVA 等多种卷材的高速分切与复卷，适合大批量连续生产。Ideal for high-speed slitting & rewinding of label stock, paper, self-adhesive, PVC and EVA webs — well suited to large-volume continuous production.
细节视图DETAILS

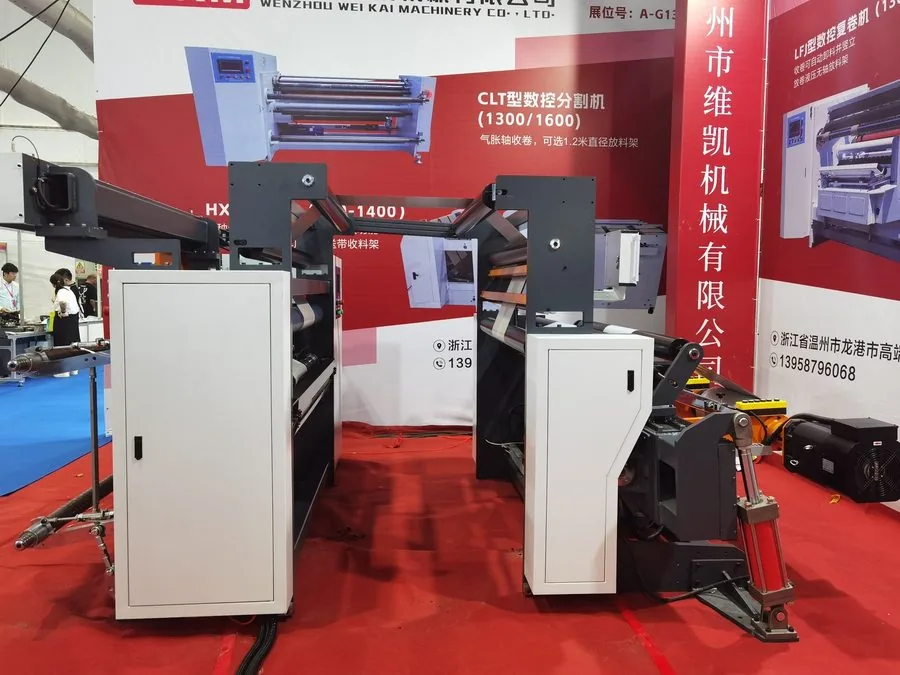

结构细节Structure Details
