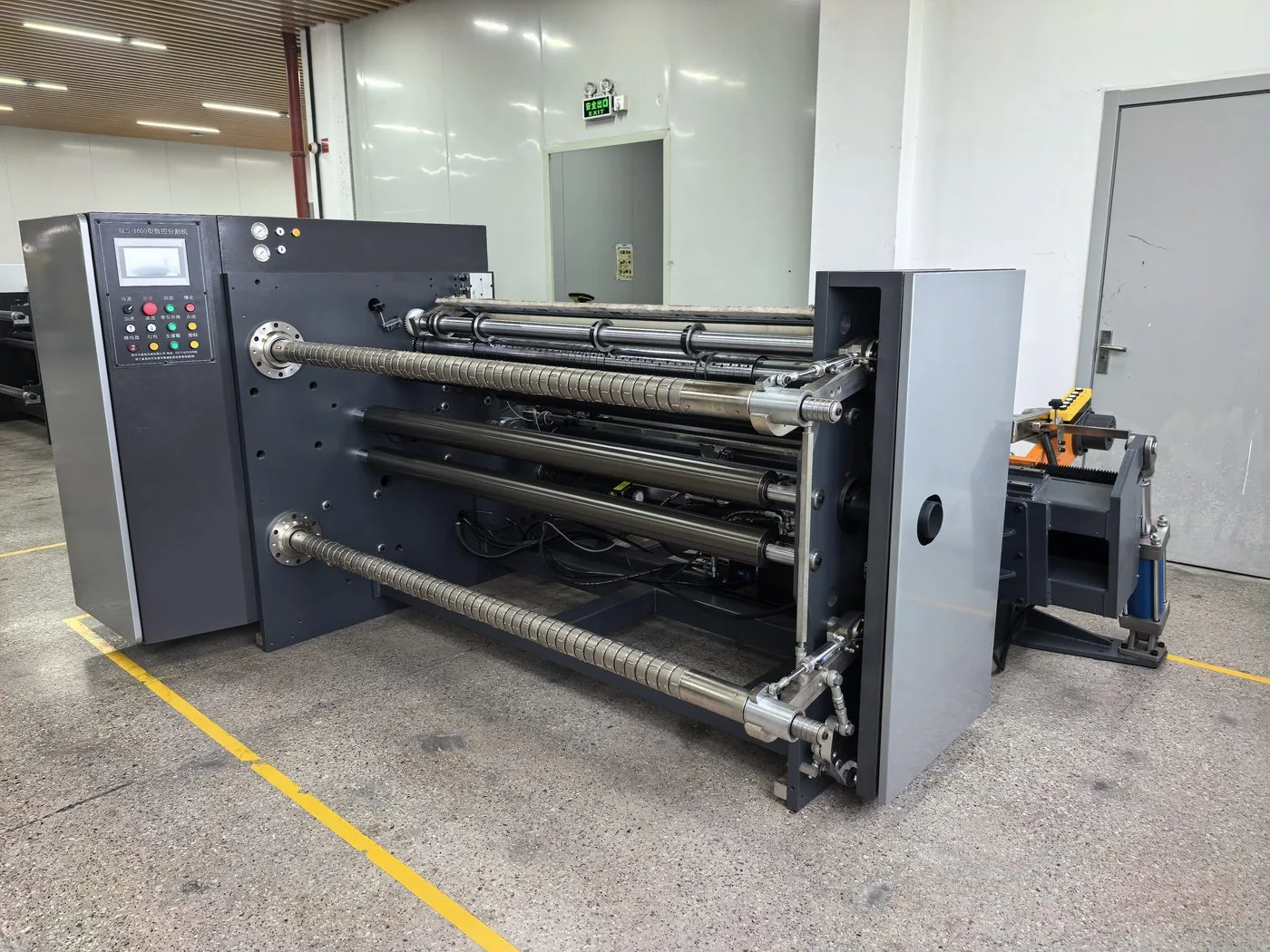

GLS型滑差轴分割机
液压无轴上料，适用大直径卷材
GLS-1300 / GLS-1600
分割机Slitting Machines
机型介绍Overview

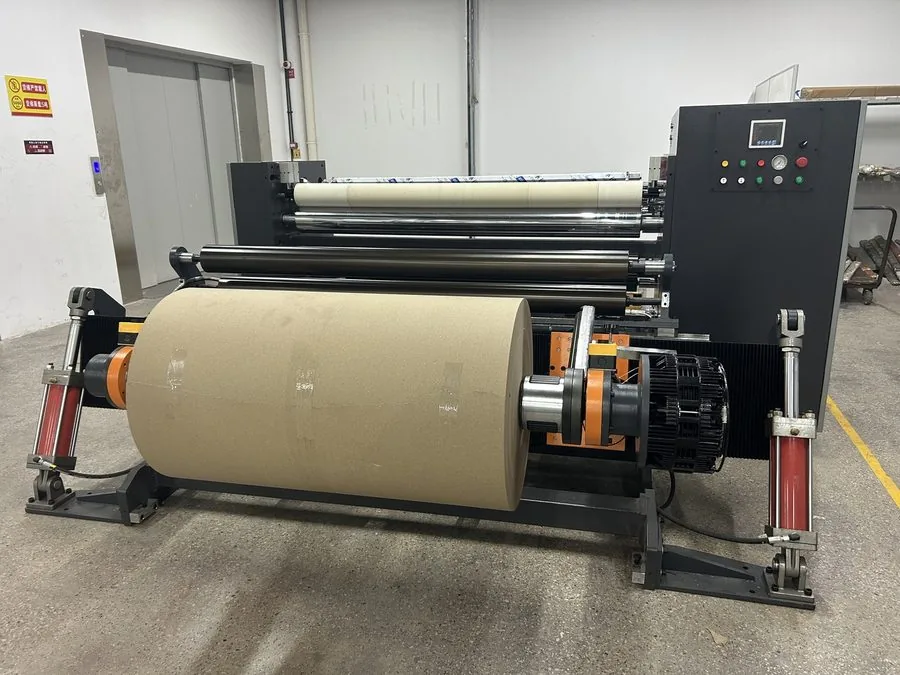

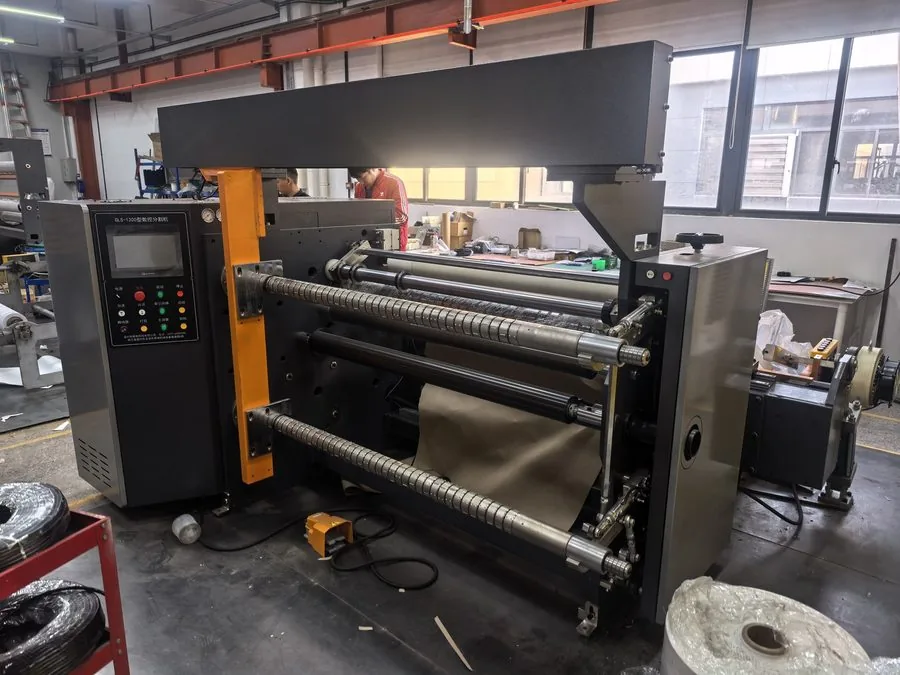

GLS 型分割机，配双滑差轴收卷，放卷液压无轴上料，最大可用直径达 1.3 米，换卷无需穿轴；运行速度 300 米/分钟，成卷张力均匀、端面平整。选配顶置推料系统，收卷卸料更省人工。The GLS is equipped with dual slip-shaft rewinding and a hydraulic shaftless unwind with a 1.3 m maximum usable diameter, allowing roll changes without threading the shaft. Running speed is 300 m/min with uniform roll tension and perfectly flush edges. An optional top-mounted push-out system makes rewinding and discharge easier.
双滑差轴收卷，成卷张力均匀稳定

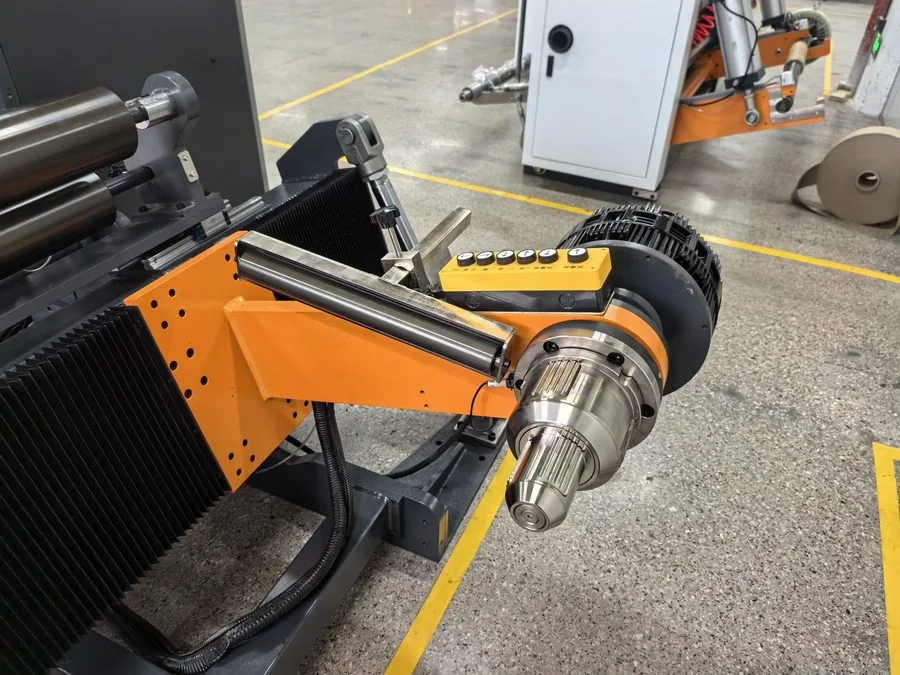

液压无轴上料，可选承重 1.5–2 吨
可选大功率风机，排废更顺畅
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
GLS-1300 / 1600
放卷宽度
1300 / 1600 mm
收卷直径
600 mm
放卷直径
1300 mm
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的高速分切与复卷，适合大卷径、连续批量生产。Ideal for high-speed slitting & rewinding of paper, self-adhesive label stock, PVC and EVA webs — suited to large-diameter rolls and continuous batch production.
细节视图DETAILS
结构细节Structure Details
