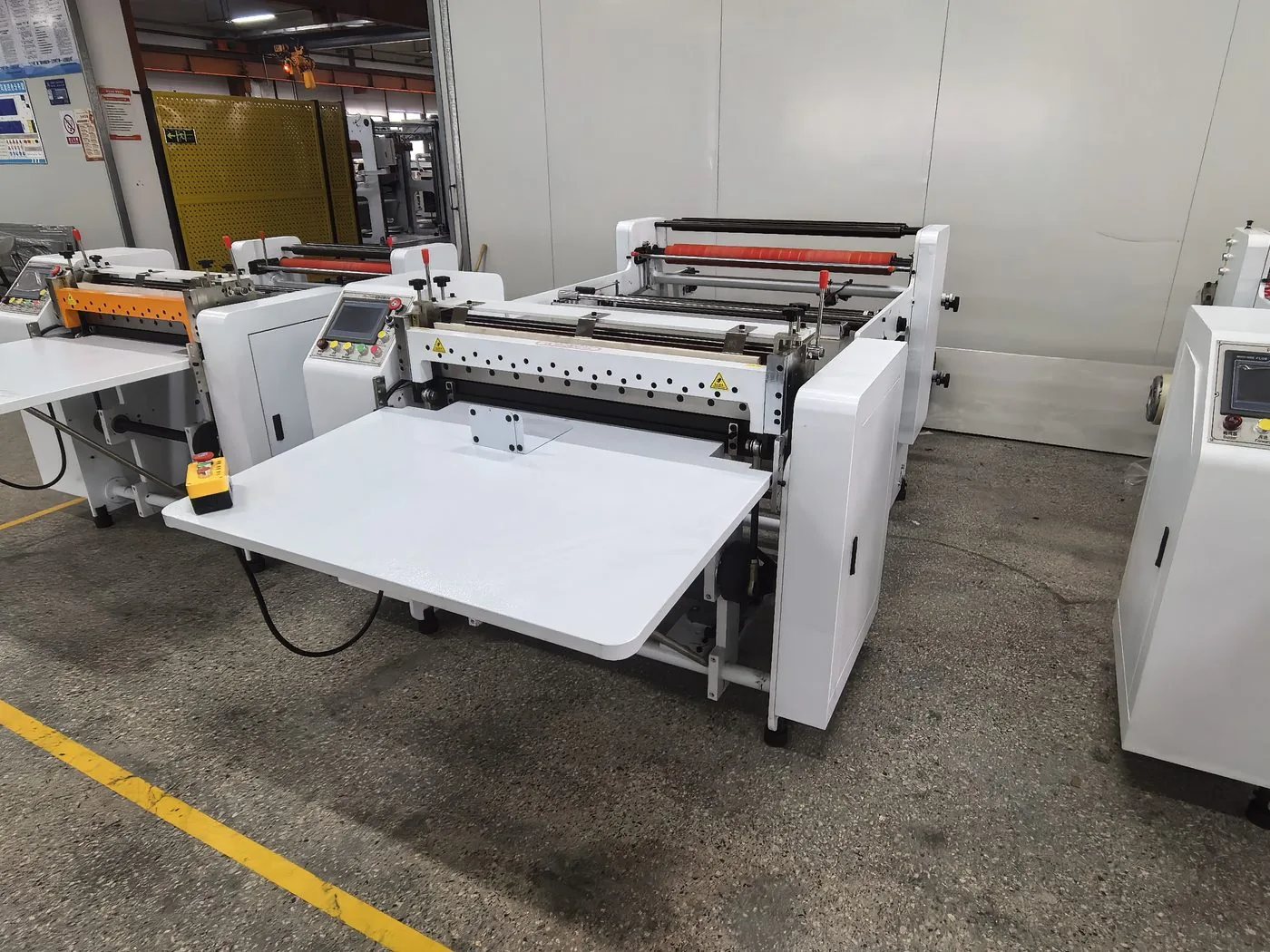

LC型横切机
基础款，多种材料适用
LC-600 ~ LC-1100
横切机Sheet Cutters
机型介绍Overview

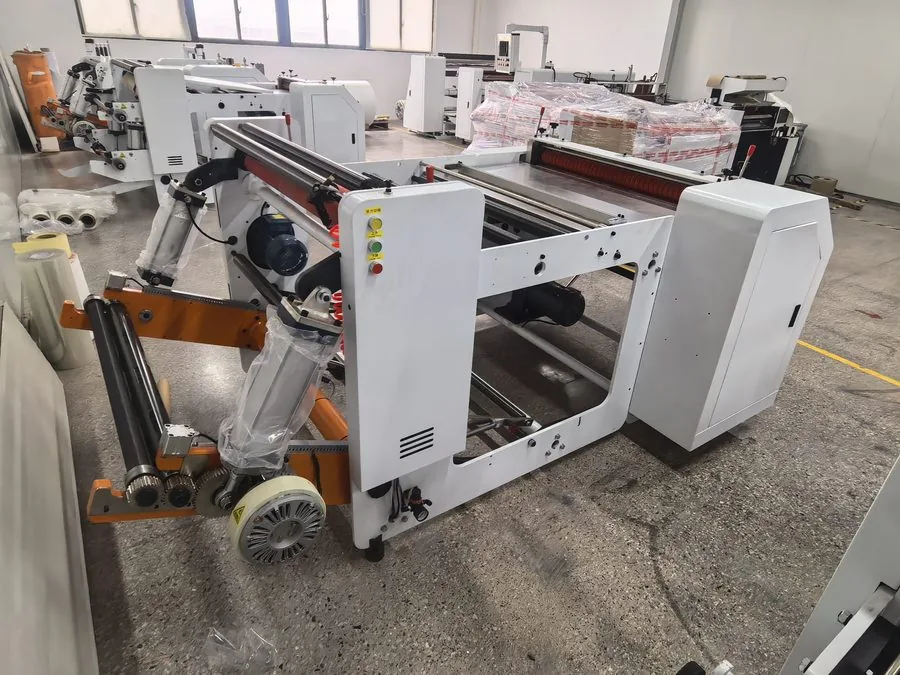

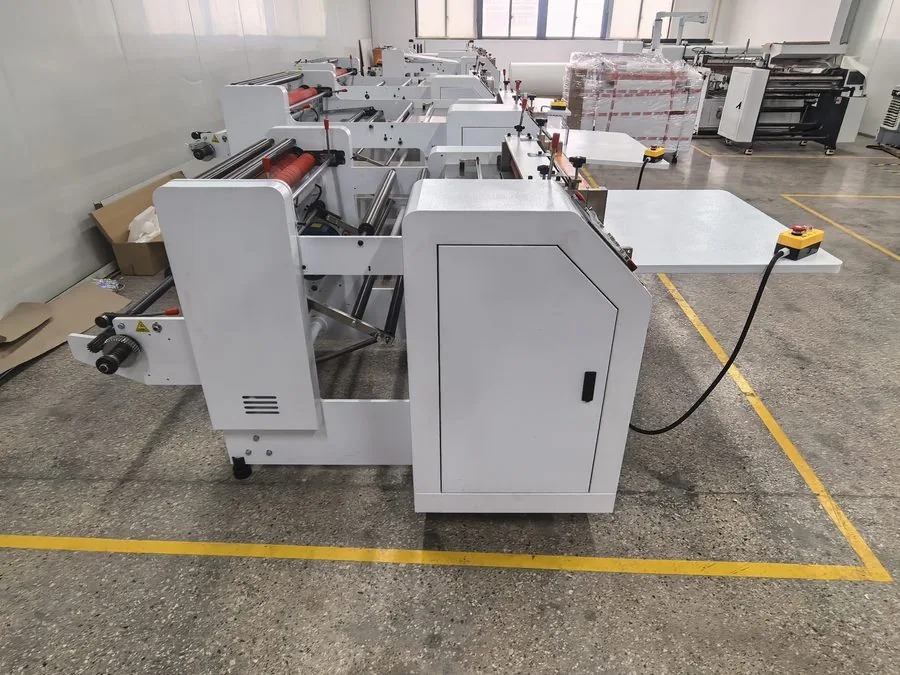

LC 型是面向多种材料加工场景的基础款设备，标配双放料位可一次完成双卷材定长裁切，价格实惠，运行稳定。5 款宽度型号覆盖 550–1050mm 最大门幅。另外可选紧凑短款型号，或者选配气动上料和张力系统。The LC Roll-to-Sheet Cutting Machine is an entry-level sheeting solution for diverse material converters. Standard dual unwind stations enable simultaneous length cutting of two webs, with reliable operation at an economical price. Five web-width models cover 550–1050mm. An optional compact short-frame version is available, as well as upgrades for pneumatic loading and tension control.
双料位放卷，效率倍增
断料自动停机，减少空转与浪费
标配静电消除器，带刀口除胶装置
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
LC-600 / 800 / 900 / 1000 / 1100
放卷直径
500 mm
最小误差
±0.2 mm
最高速度
70 m/min · 200 cuts/min
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的定长裁切，广泛用于印刷、包装、电子等行业。Ideal for length cutting of paper, self-adhesive label stock, PVC and EVA webs — widely used in printing, packaging and electronics converting.
细节视图DETAILS

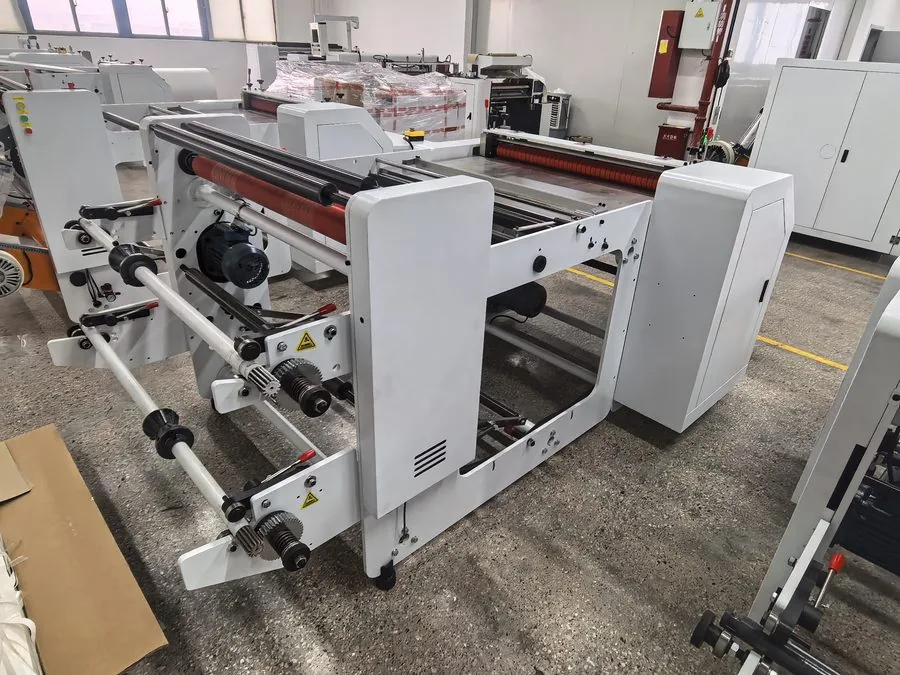

结构细节Structure Details
