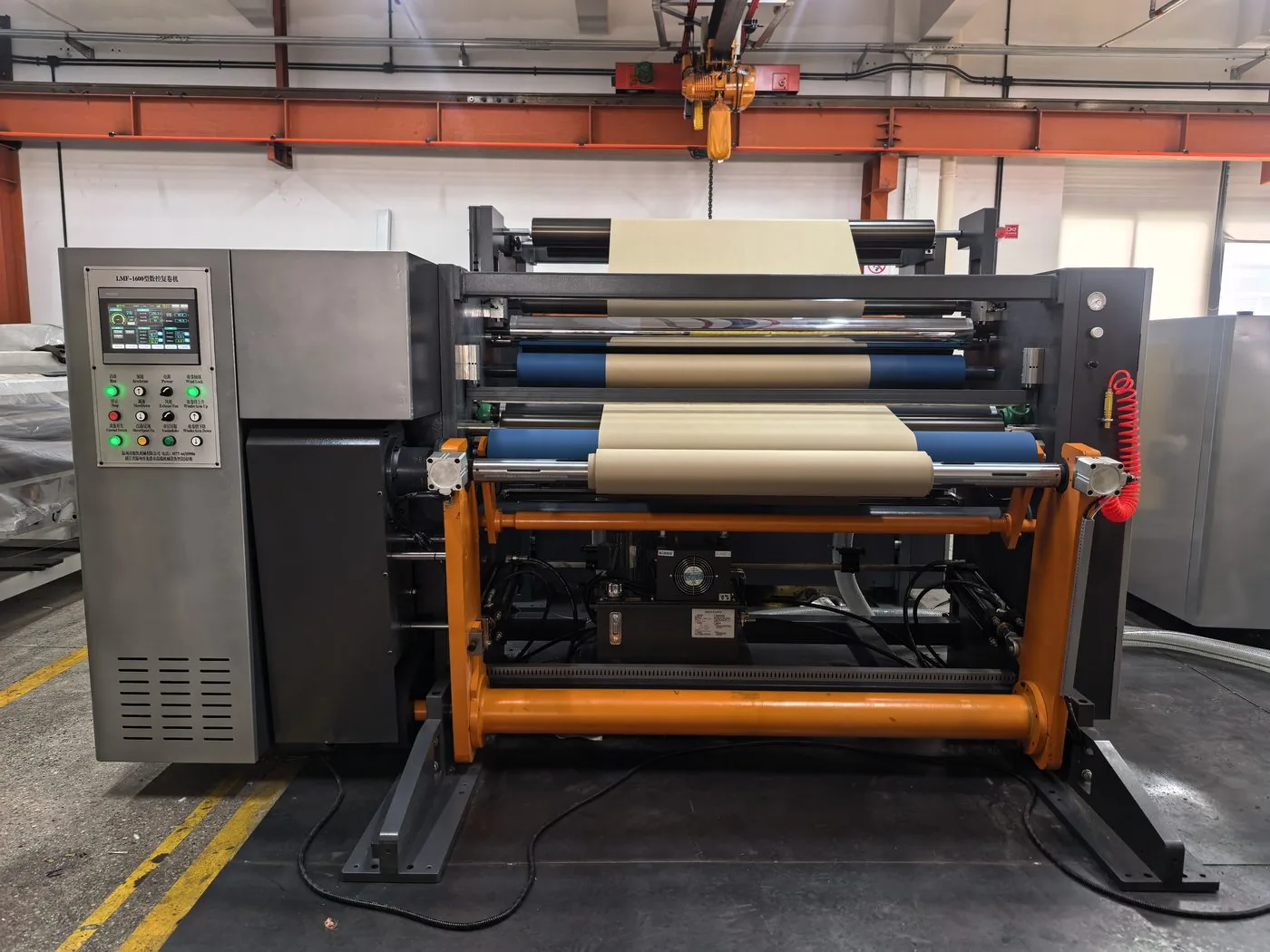

LMF型复卷机
VLF 型升级款，龙门结构
LMF-1600 / LMF-1800
复卷机Rewinding Machines
机型介绍Overview
LMF 是龙门式复卷机，VLF 复卷机的升级款，重型机架复卷稳定可靠。放卷与收卷直径均可达 1300mm，液压有轴收卷带压辊，收卷紧实；圆刀修边配风机排废；放卷液压无轴上料，配气动接纸平台。最高运行速度可达 500 米/分钟。The LMF is a portal-type rewinding machine, an upgraded version of the VLF, built on a heavy-duty frame for rock-solid stability. Both unwind and rewind diameters reach 1300 mm; hydraulic shafted rewinding with a pressure roller delivers tight rolls; circular-knife edge trimming is paired with blower waste extraction; and a hydraulic shaftless unwind with a pneumatic splicing platform serves the unwind. Maximum running speed up to 500 m/min.
龙门款架结构，重型机架稳定可靠
液压有轴收卷带压辊，收卷紧实
最高速度 500 米/分钟
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
LMF-1600 / 1800
放卷宽度
1600 / 1800 mm
收卷直径
1300 mm
放卷直径
1300 mm
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的复卷与修边，放卷与收卷直径均可达 1300mm，适合大卷径、连续批量复卷生产。Ideal for rewinding and edge trimming of paper, self-adhesive label stock, PVC and EVA webs, with unwind and rewind diameters up to 1300 mm — well suited to large-diameter, continuous batch production.
细节视图DETAILS

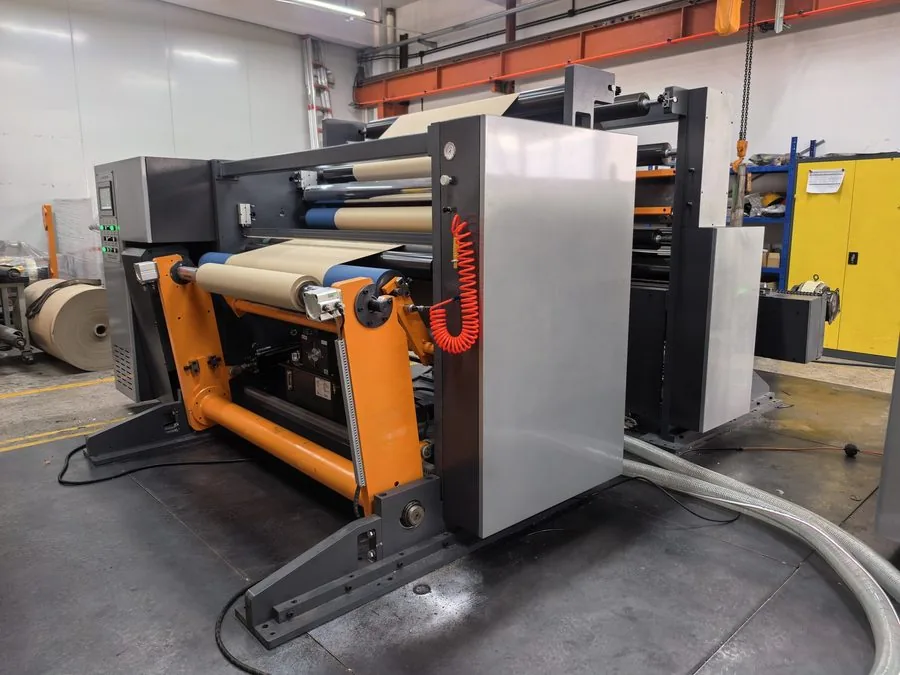

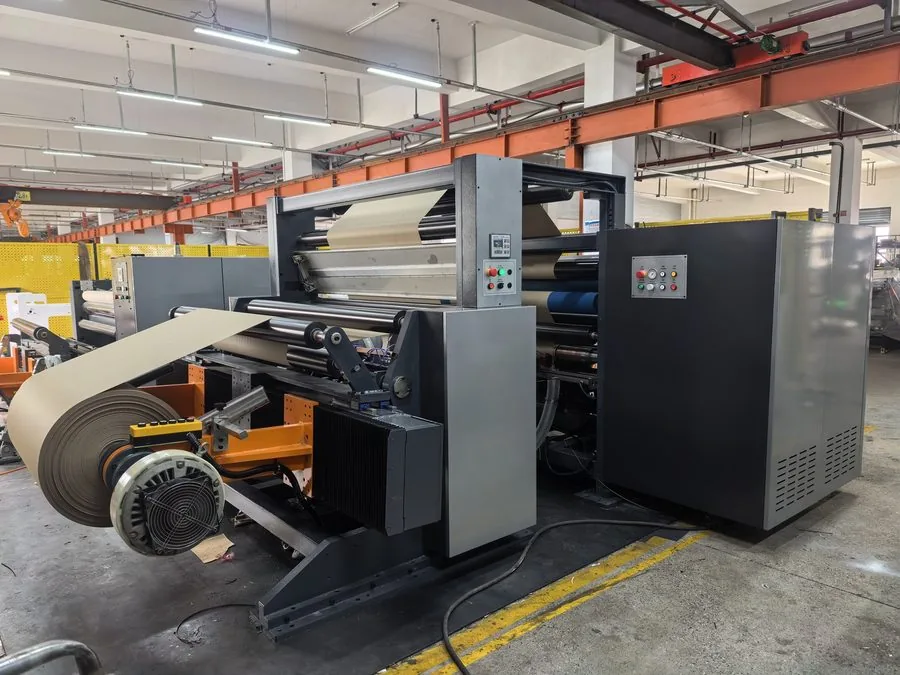

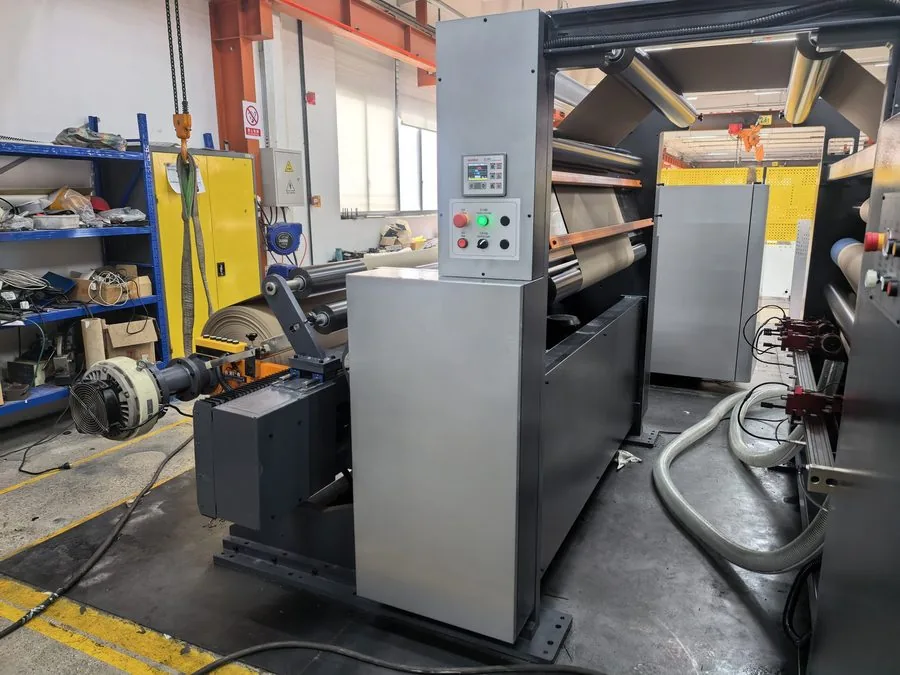

结构细节Structure Details
