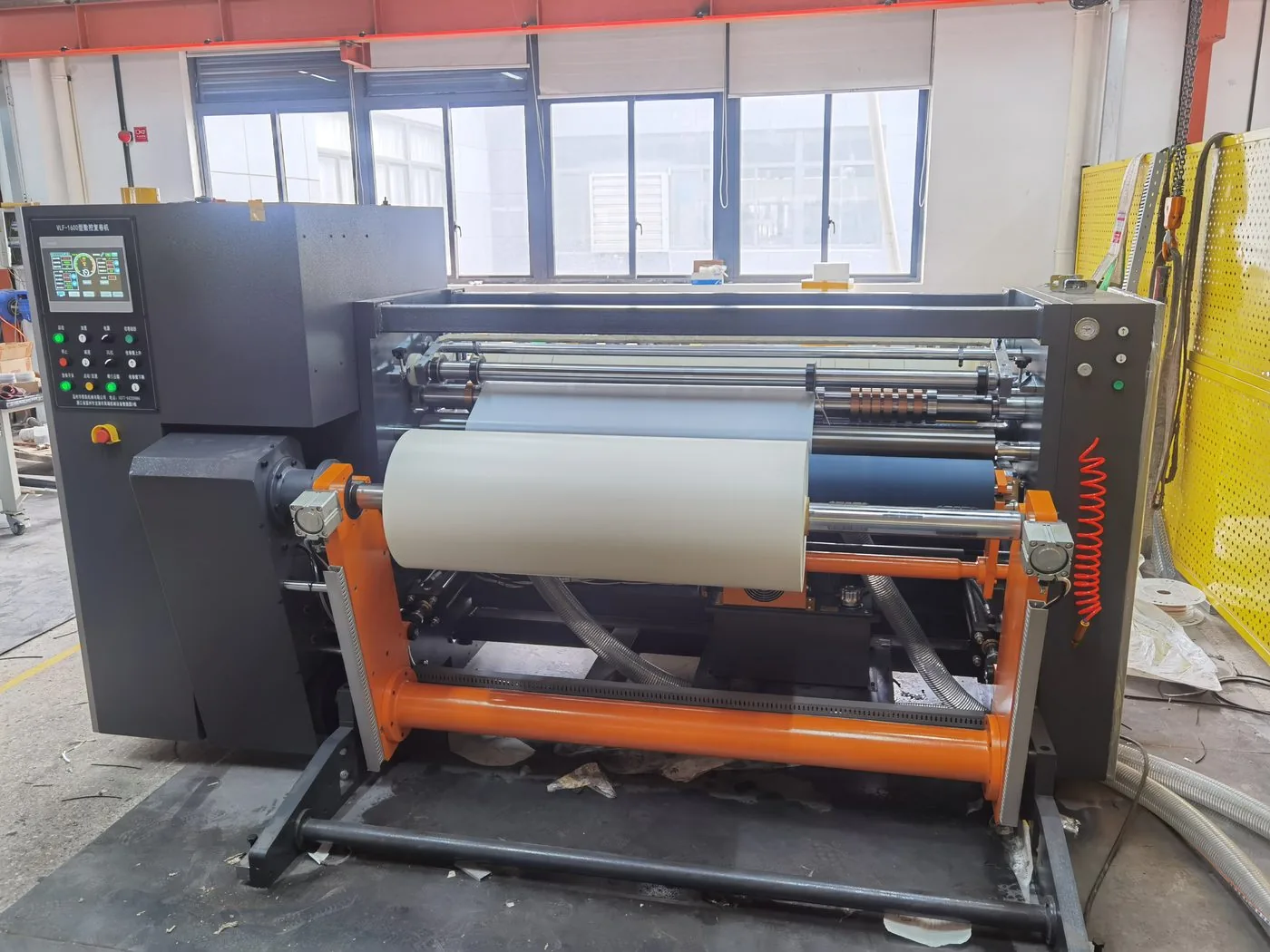

VLF型复卷机
收放卷直径 1300，液压卸料
VLF-1600
复卷机Rewinding Machines
机型介绍Overview

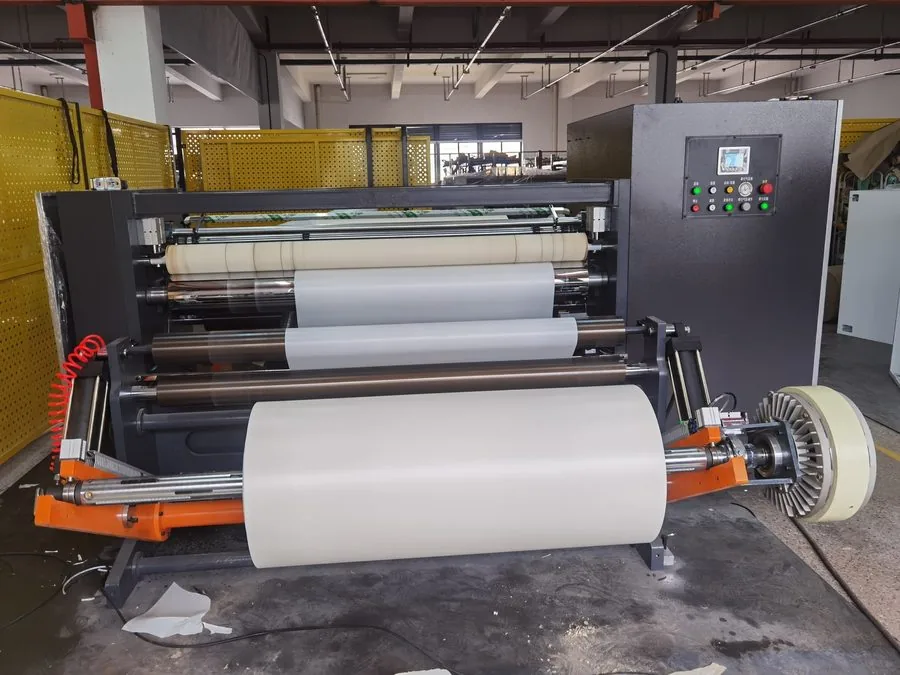

VLF 是宽幅大卷径复卷机，单轴收卷配压辊，收卷紧实。中间牵引稳速走料，张力均匀。液压无轴上料配气动接纸平台，换卷连贯节约时间。运行速度可达 400 米/分钟。另有液压有轴放料架可选。The VLF is a wide-web rewinder for large-diameter rolls. Single-shaft rewinding with a pressure roller delivers tight rolls; mid-web traction keeps feeding steady and tension uniform. A hydraulic shaftless unwind with a pneumatic splicing platform makes roll changes continuous and time-saving. Running speed up to 400 m/min. A hydraulic shaft-type unwind stand is optionally available.
单轴收卷配气动压辊，收卷紧实无气泡褶皱
中间牵引稳速走料，张力均匀复卷平整

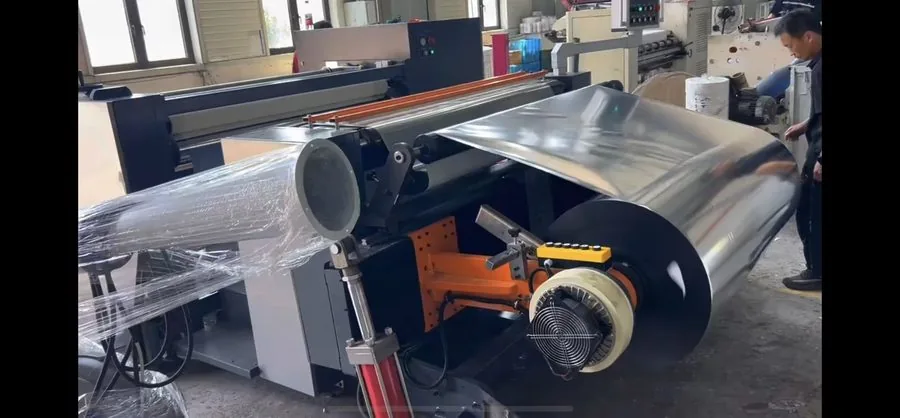

液压无轴上料配气动接纸，换卷连贯节约时间
技术参数SPECIFICATIONS
技术规格Technical Specifications
可选型号
VLF-1600
放卷宽度
1600 mm
收卷直径
1300 mm
放卷直径
1300 mm
适用材料与应用Applications
适用于不干胶、纸张、PVC 等材料母卷的复卷，放卷与收卷直径均可达 1300mm。Suitable for rewinding master rolls of self-adhesive label stock, paper, PVC and similar materials, with unwind and rewind diameters up to 1300 mm.
细节视图DETAILS
结构细节Structure Details
