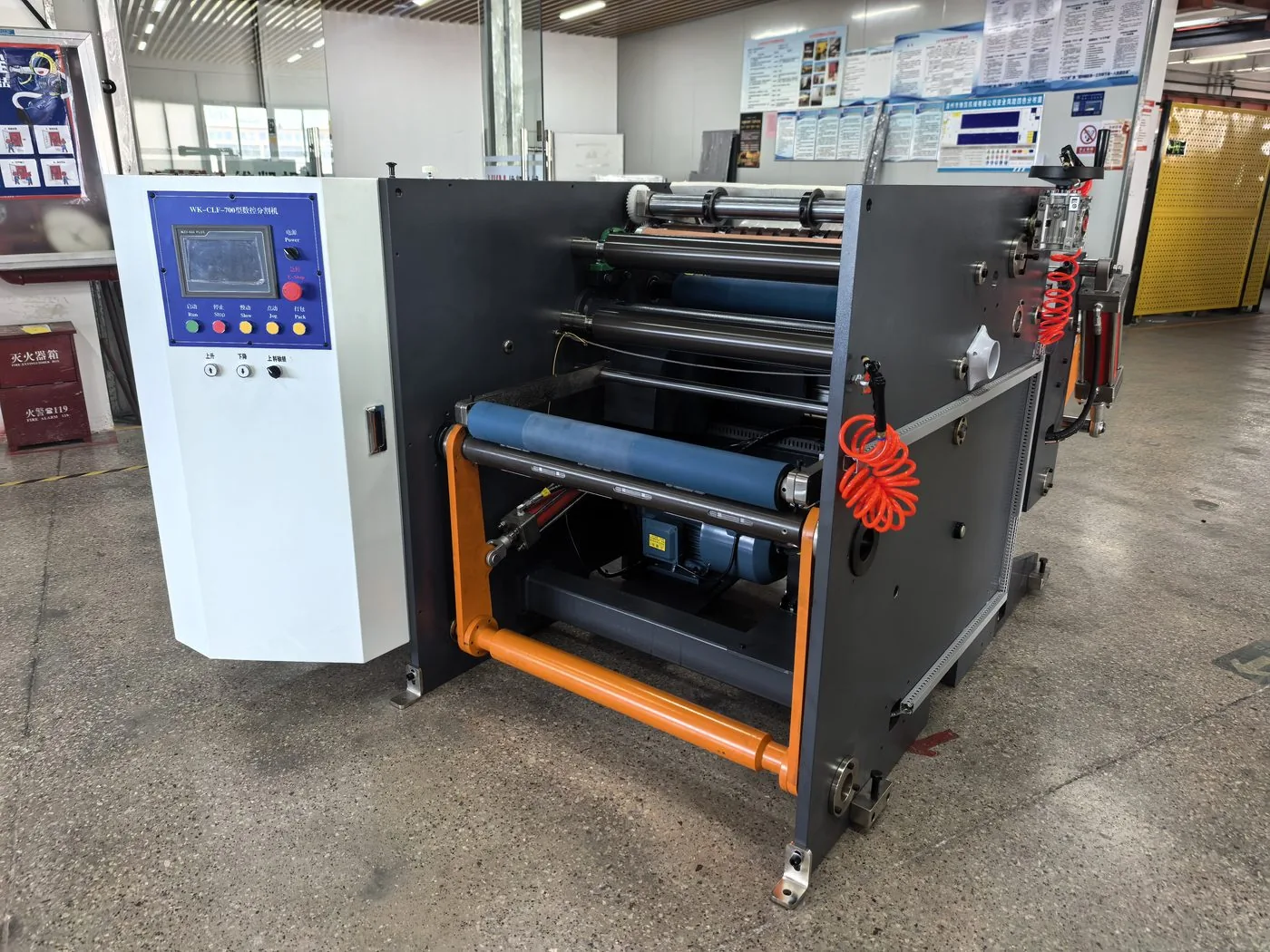

CLF Rewinding Machine
Rewind Ø900, hydraulic unloading
CLF-1300 / CLF-1600
复卷机Rewinding Machines
机型介绍Overview

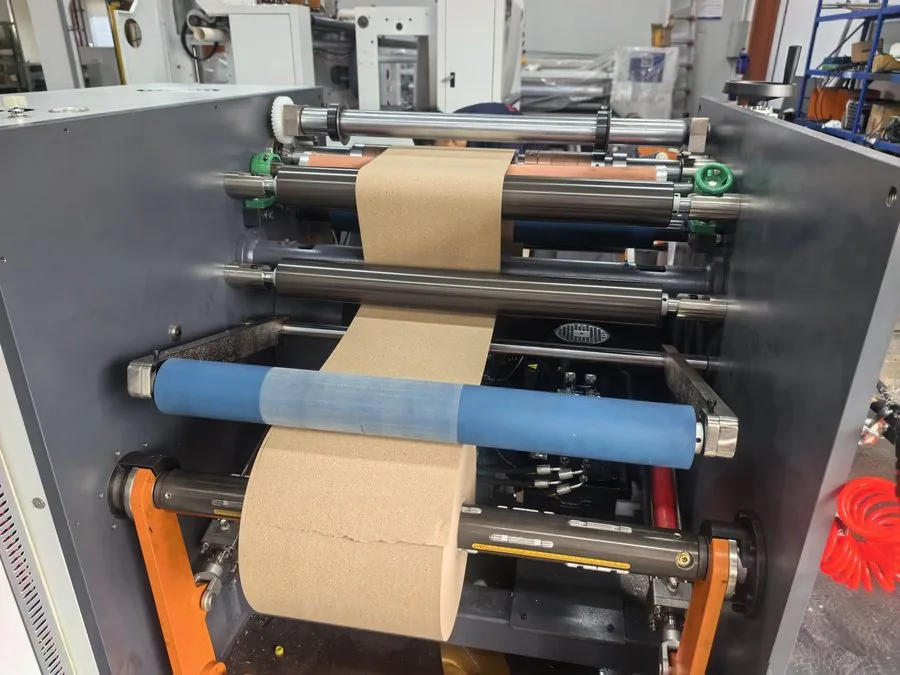

CLF 是单轴复卷的紧凑一体式机型，主机集成切边系统与风机排废，放卷标配液压有轴上料架，收卷带液压卸料装置，上下料省时省力，运行速度可达 300 米/分。The CLF is a compact all-in-one single-shaft rewinding machine with an integrated trimming system and blower waste extraction. The unwind comes standard with a hydraulic shaft-type loading stand, and a hydraulic device assists discharge — loading and unloading are quick and effortless at up to 300 m/min.
All-in-one compact design saves floor space

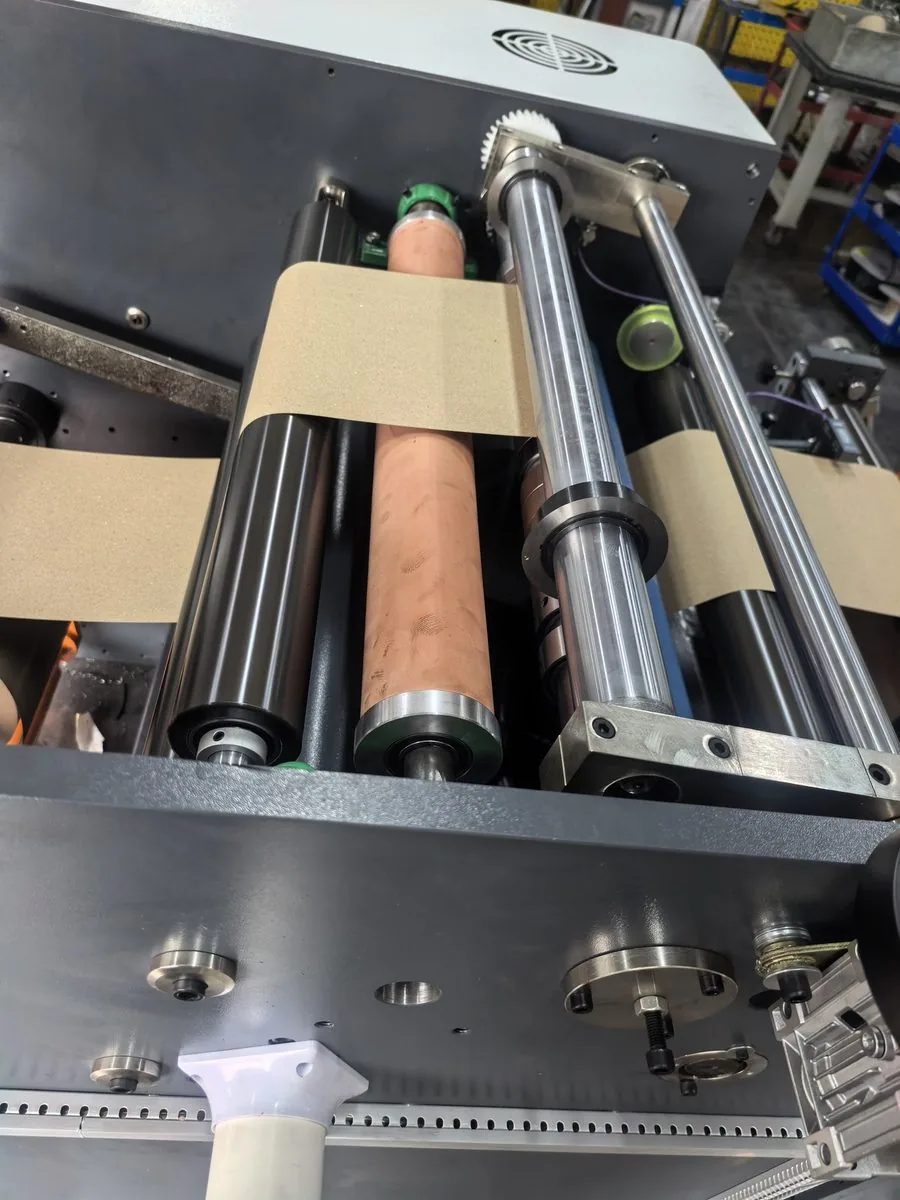

Trimming and slitting, with blower extraction

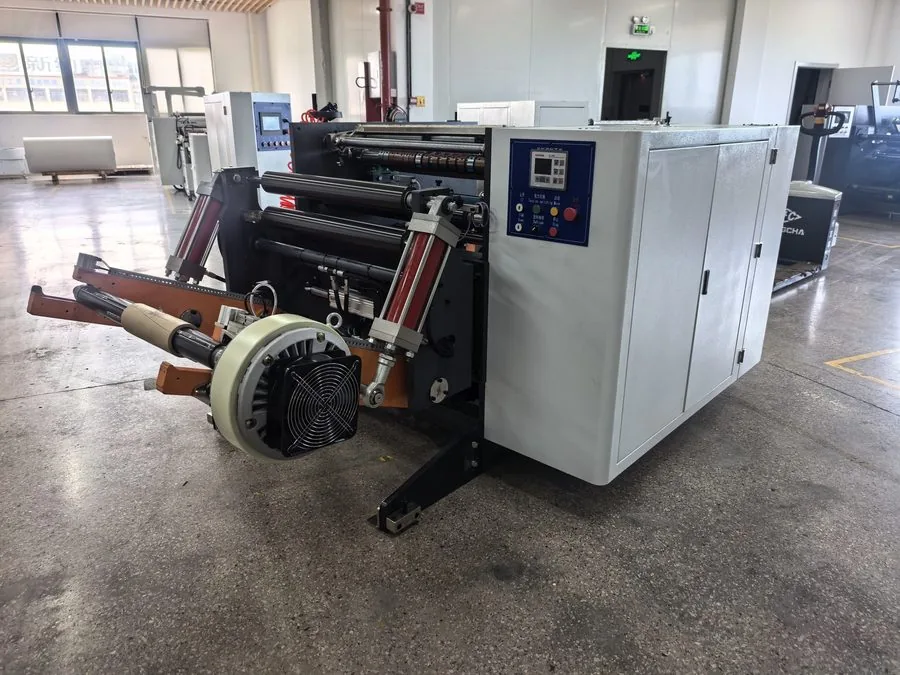

Standard hydraulic shaft-type unwind, shaftless optional
技术参数SPECIFICATIONS
技术规格Technical Specifications
Available Models
CLF-1300 / 1600
Unwind Web Width
1300 / 1600 mm
Rewind Diameter
900 mm
Unwind Diameter
1300 mm
适用材料与应用Applications
适用于纸张、不干胶标签、PVC、EVA 等卷材的单轴复卷，收卷直径可达 900mm，适合中小批量、快速换单的生产场景。Ideal for single-shaft rewinding of paper, self-adhesive label stock, PVC and EVA webs, with rewind diameters up to 900 mm — well suited to small-to-medium batches and frequent job changes.
细节视图DETAILS
结构细节Structure Details
